PHDCCI's Architecture

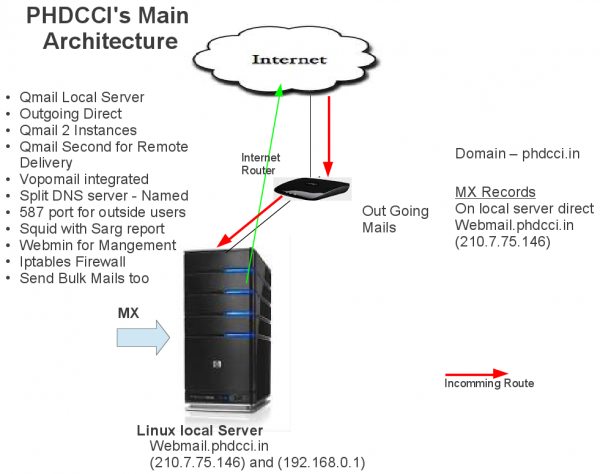

Architecture Diagram[edit]
Details[edit]
Server Details:
Global Ip : 210.7.75.146 (active), eth0 port
Local Ip : 192.168.0.1 (active) eth1 port
Summary Of Structure[edit]
In phdcci, one mail server contains :
a) Iptables Firewall
b) Squid + Sarg
c) Qmail + 2 Instance
d) Local DNS
1. Mails are directly land to the mail server.
2. When phdcci user send a mail to outside domain ,1st instance passes to 2nd instance and 2nd instance of qmail send it to the outside destination.
